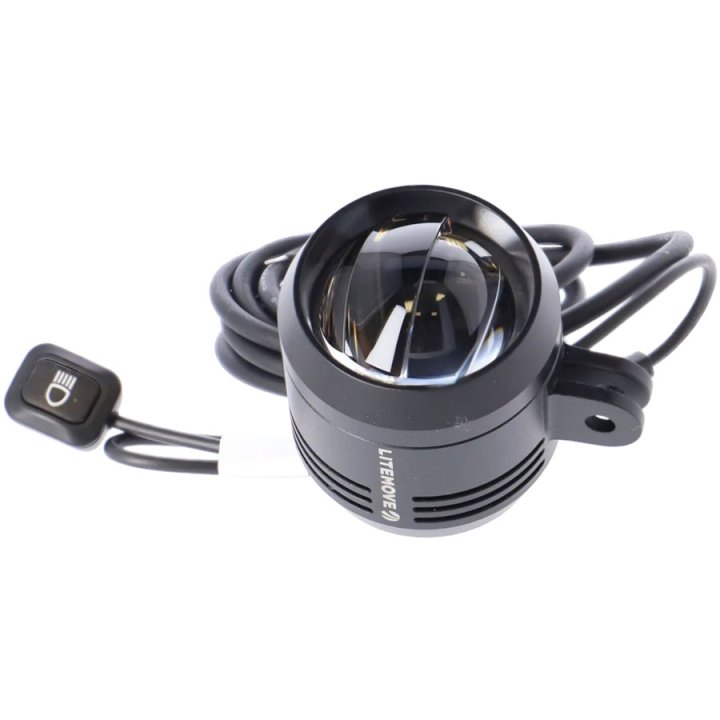

Litemove AC-150 LED Front Light for E-Bikes - AC1502 | Top Bracket

Litemove’s AC-150 headlight provides 8m wide and up to 230m distance of beam visibility ahead, giving electric bike riders better visibility in both day and dark areas. Small & Compact With a size smaller than a deck of cards, you can easily mount them without any interference to other components. Please note: This headlight can ONLY be charged through 12V(6V ~ 16V) DC power Do not charge via an AC power source (e.g., a dynamo) Connecting to power supplies above the voltage limit may cause damage to the light The light does not feature a switch, it is controlled via the e-bike system Specifications of the AC-150 LED Front Light Light Output: High beam: 150 lux / Low beam: 90 lux Optical Technology: MTi Plus Light Source: LED *4 Input Voltage (DC) 12V(6V ~ 16V) Power Consumption High beam: 13W max. Power Consumption Low beam: 6W Cable Diameter Power: ø4mm / Switch: ø2.55mm Cable Length Power: 1400mm / Switch: 300mm/650mm IP Rating IP56 Operating Temperature (°C) -25 ~ +50 Dimension (WxHxL) ø46 x 52mm Switch bracket / mount ø22.2mm Type of Approval StVZO-K/ ISO-6742
