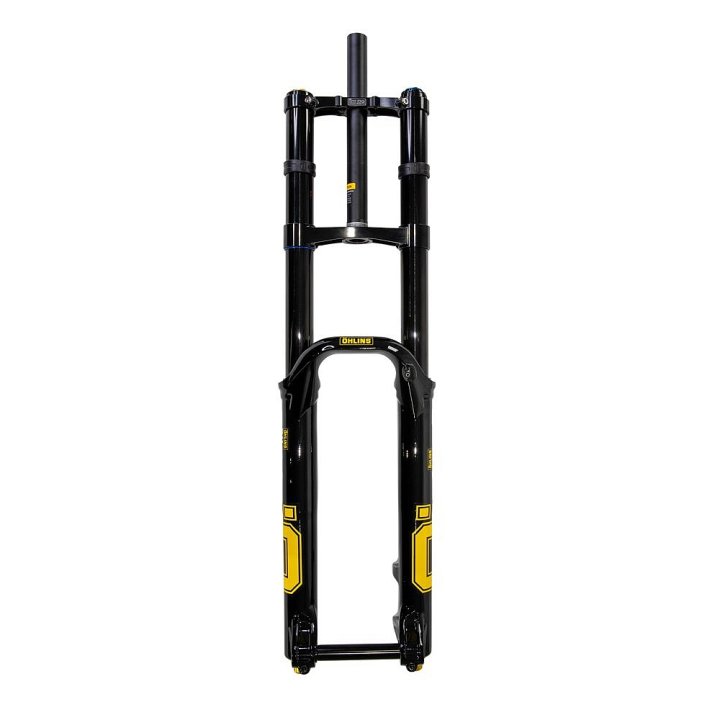

ÖHLINS DH38 M.2 Air 27.5 / 29" Suspension Fork | TTX18 | 200mm | 20x110mm Boost

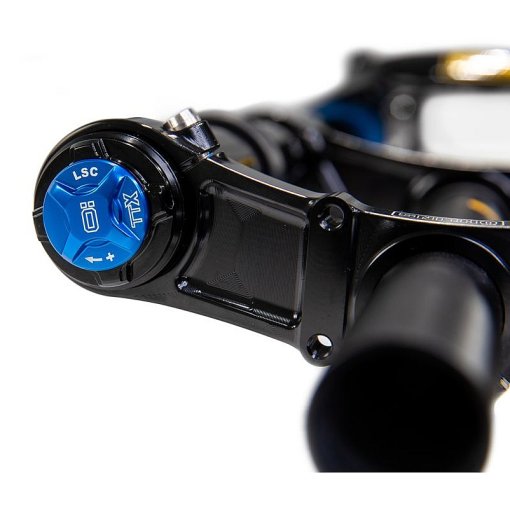

The new DH38 m.2 is ÖHLINS' most advanced downhill fork to date – developed for maximum performance under the most demanding conditions. It impresses with noticeable improvements in comfort, sensitivity, and tire inserts. Thanks to a new Spring Boosters, tire insert progression has been significantly increased, while optimized compatibility with Volume Spacern offers even more options for fine-tuning the riding experience. With 16 clicks for Low-Speed-Compression, 3 clicks for High-Speed-Compression, and 16 clicks for the rebound, the DH38 m.2 can be precisely adjusted to individual needs. The innovative Floating Axle Design reduces friction to a minimum and ensures even more sensitive suspension response. Despite its high-end technology, the fork weighs only 2,820 grams (including axle and screws). Available for 27.5" and 29" wheels and in air or coil versions, it offers a whopping 200 mm of travel – uncompromisingly tuned for downhill riding. For maximum setup flexibility, there are four separately available DH crowns with 46, 50, 54, or 58 mm offset to choose from – perfect for your individual riding style and frame. Features of ÖHLINS DH38 M.2 Air: 200 mm of travel (can be converted to 180 mm) 38 mm stanchions with new surface coating for reduced friction Proven TTX18 cartridge with new optimized tuning New spring booster for increased progressivity Suitable for 27.5" and 29" wheels Maximum tire dimensions 29 x 2.8 or 27.5 x 3.2 Can be disassembled for maintenance and repair Offset 46/50/54/58 mm possible -> Fork crown must be ordered separately Suitable for electric bikes Spring and damper work separately Double-clamped, floating axle Optional fork crowns Offset 46: Item no. 19233-08 Offset 50: Item no. 19233-12 Offset 54: Item no. 19233-16 Offset 58: Item no. 19233-20 Please note: The fork crown is not included in delivery and needs to be ordered separately. Included in delivery: fork incl. DH Boost 20 x 110 m thru axle and manual
