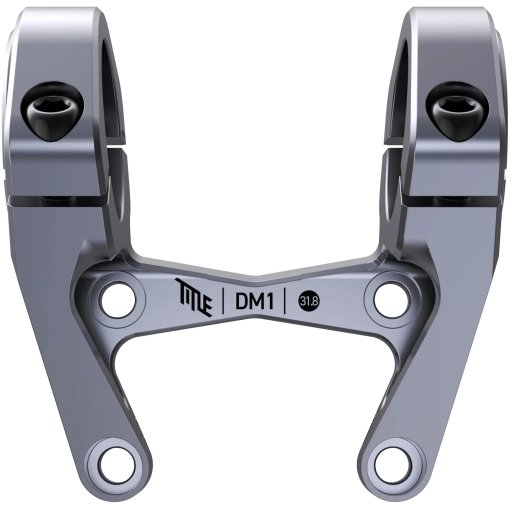

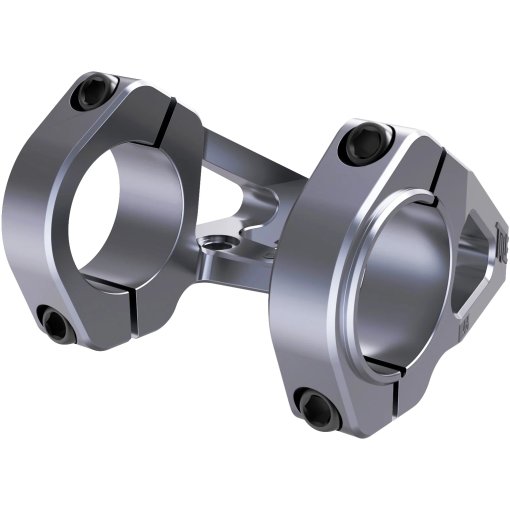

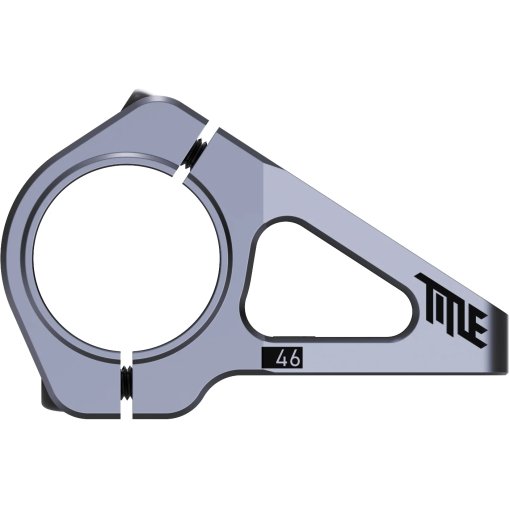

Title DM1 Stem - MTB | 31.8 | Direct Mount - grey

The DM1 stem is made of solid aluminum 7075 and features a particularly large clamping width of 85 mm. A thin headset spacer is required for installation (not included). The high-quality Direct Mount stem has passed the stringent TRI-TEST® GR of the independent EFBE test laboratory, which certifies it for use on Freeride and Downhill mountain bikes. Technical details of the Title DM1 stem material: aluminum 7075 T73 (machined) clamp diameter: 31.8 mm clamp width: 85 mm length: 46 mm bolts : stainless steel (M6 x 1.0 x 18/20 mm) weight: approx. 144 / 190 g (without / with all 8 bolts; manufacturer's specification) Range of use: Downhill / Freeride Installation instructions: The bolts of the clamping plate must be tightened at an even distance at the top and bottom. Please note the maximum torque specified by the respective manufacturer for the steerer tube (approx. 5 to 6 nm). The maximum torque for the stem is 8 nm.
