Quad Lock 360 Base Flat Rectangle 4 Hole

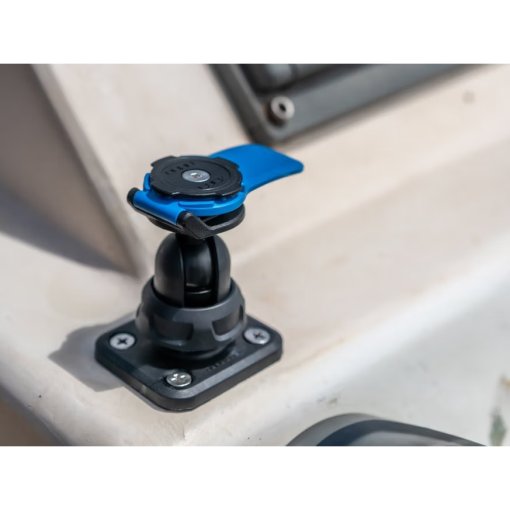

Quad Lock 360 Base Flat Rectangle 4 Hole Attach your mount securely to flat surfaces with one of the rectangular flat-hole bases. Highlights of the Quad Lock 360 Base mount with rectangular flat hole base On flat surfaces, both mounts can be attached vertically, diagonally or horizontally Each mount uses the universal AMPs hole spacing standard and the holes accept 10G or M5 countersunk screws When using the 4-hole mounting, we recommend using all 4-hole screws to ensure a stable connection To connect the spacer sleeve to a Quad Lock 360 HEAD or ARM, a 10 mm spacer sleeve and two screws are supplied Made from robust nylon and use the universal AMPs hole spacing standard Mounting with 4 HOLES 58 mm (2.3") long x 50 mm (2") wide x 14 mm (0.55") high AMPS hole spacing: 38 mm (1.5") x 30 mm (1.2") Scope of delivery: 1 x flat rectangular 4-hole mount, 1 x 10 mm spacer sleeve, 1 x M5 x 30 screw (for connecting the spacer sleeve to the lever head or the 360 arm), 1 x M5 x 45 screw (for connecting the spacer sleeve to the weatherproof wireless charger)
